| ブランド名: | Raymo |
|---|---|
| 証明: | CE/RoHs/REACH/ISO9001:2015 |
| モデル番号: | J30J-21TJS |
| 書類: | J30J Miniature Rectangular ...es.pdf |
| Minimum Order Quantity: | 1 Piece |
| 価格: | 5-15 USD |
| Packaging Details: | CTN |
| Delivery Time: | 3-4 Weeks |
| 支払条件: | T/T、D/A、D/P、Western Union、MoneyGram |
| Supply Ability: | 5000PCS Per Month |
| コントクトピン: | 9つのピン | ケーブルの長さ: | 必要に応じて |
|---|---|---|---|
| 利用できるピン: | 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 | タイプ: | コネクタ |
| 中心導体: | 銅合金,金塗装 | 温度範囲: | -55°C+125°C |
| 電圧定格: | 250V | 格子距離: | 2.54×254 |
| ハイライト: | J30J series 9-pin connector,250V electronic equipment connector,J30J series 9-pin 250V connector |
||
| Attribute | Value |
|---|---|
| Contact Pin | 9 Pins |
| Cable Length | As Require |

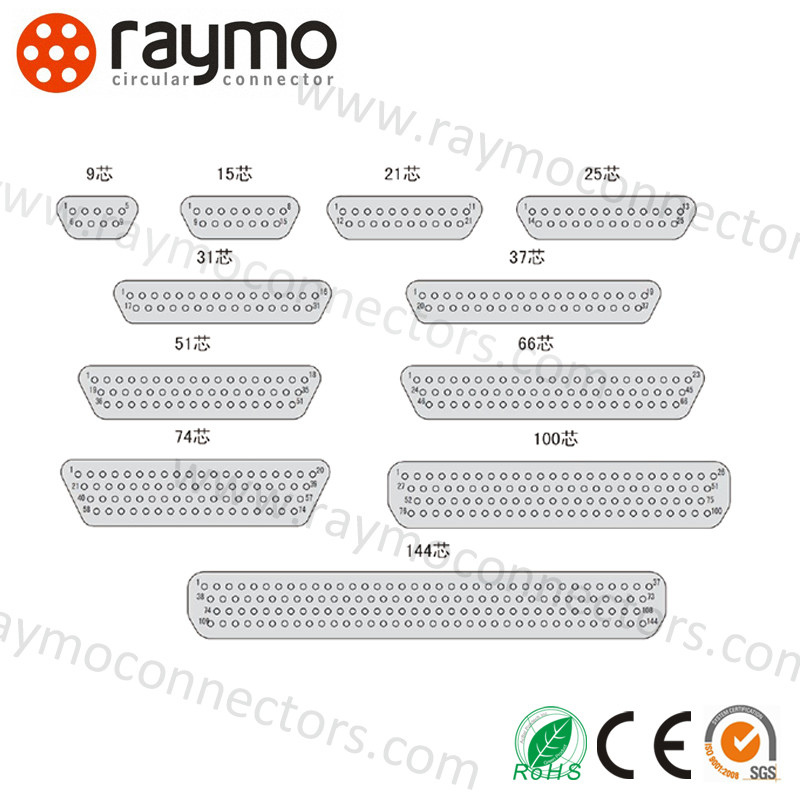

| Available Pins | 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 |
| Type | Connector |
| Center Conductor | Copper Alloy, Gold Plating |
| Temperature Range | -55～+125 ℃ |
| Voltage Rating | 250V |
| Grid Distance | 2.54×2.54 |

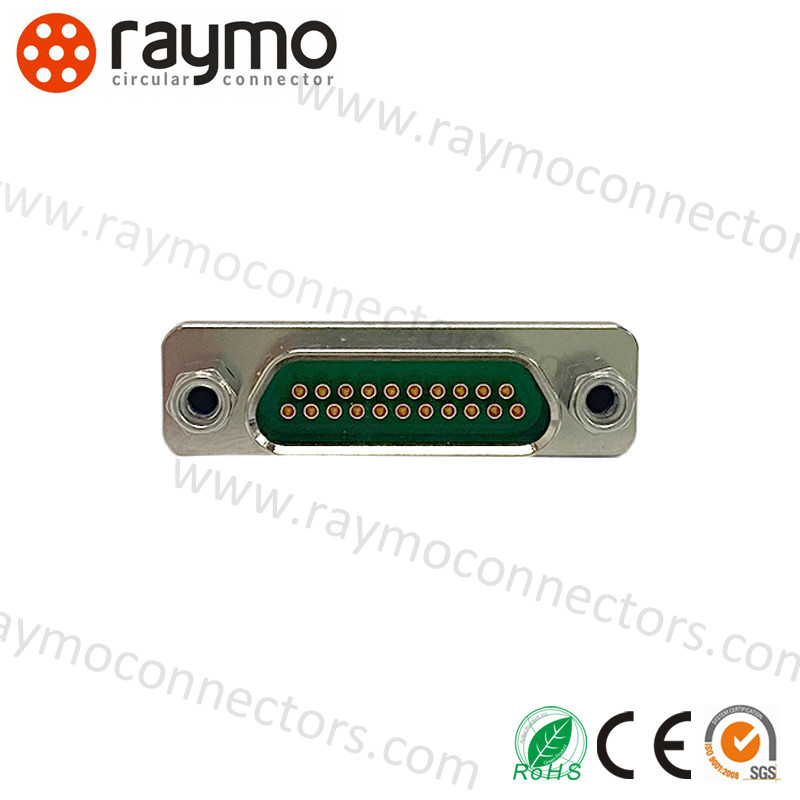

The J30J series connector is a highly reliable and versatile product designed for various industrial applications. With customizable cable length and durable construction, it provides secure connections between devices and systems.
| Parameter | Value |
|---|---|
| Voltage Rating | 250V |
| Application | Electronic Equipment |
| Mating Cable | AFR-250, White Wire 0.1~0.15mm² |
| Wire Length | 50cm, 500mm |
| Withstanding Voltage | 500VAC |
| Temperature Range | -55～+125 ℃ |
| Mating Cycle | 500 Times |
| Leak Rate | ≤1.01X10^-3 Pa.cm³/s |
The J30J series connector is ideal for:
Our comprehensive support includes:
