| ブランド名: | Raymo |
|---|---|
| 証明: | CE/RoHs/REACH/ISO9001:2015 |
| モデル番号: | MDM-21ps |
| 書類: | J30J Miniature Rectangular ...es.pdf |
| Minimum Order Quantity: | 1 Piece |
| 価格: | 5-15 USD |
| Packaging Details: | CTN |
| Delivery Time: | 3-4 Weeks |
| 支払条件: | T/T、D/A、D/P、Western Union、MoneyGram |
| Supply Ability: | 5000PCS Per Month |
| 温度範囲: | -55°C+125°C | 交尾ケーブル: | AFR-250 ホワイトワイヤ 0.1~0.15mm2 |
|---|---|---|---|
| 漏れ率: | ≤1.01x10^-3 pa.cm^3/s | コントクトピン: | 21ピン |

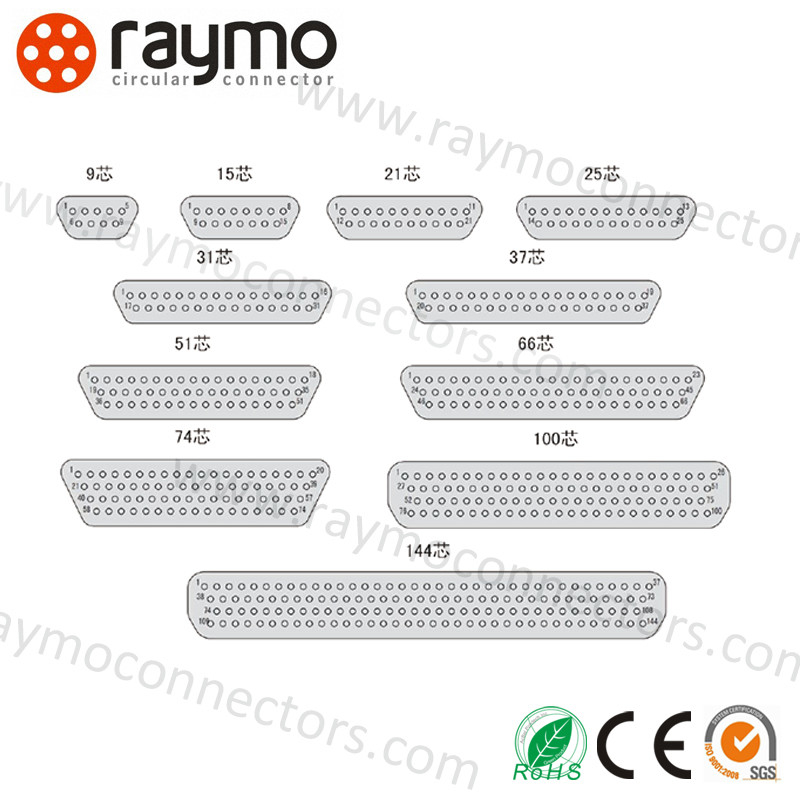

| 利用できるピン: | 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 | ワイヤーの長さ: | 50cm,500mm |
| ケーブルの長さ: | 必要に応じて | 電圧定格: | 250V |
| ハイライト: | J30J series connector 21 pins,J30J connector with white wire,250V J30J series connector |
||
| Attribute | Value |
|---|---|
| Temperature Range | -55～+125 ℃ |
| Mating Cable | AFR-250, White Wire 0.1~0.15mm2 |
| Leak Rate | ≤1.01×10-3 Pa·cm3/s |
| Contact Pin | 21 Pins |
| Available Pins | 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 |
| Wire Length | 50cm, 500mm |
| Cable Length | Customizable |
| Voltage Rating | 250V |
| Withstanding Voltage | 500VAC |
| Center Conductor | Copper Alloy, Gold Plating |
| Grid Distance | 2.54×2.54mm |
| Certifications | CE, RoHS, REACH, ISO9001:2015 |
