Name: J30J Series 31-Pin Connector 500VAC -55～+125℃ Temperature Range
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: J30J-31TJS
Price: 10.00 USD
Availability: InStock

J30J Series 31-Pin Connector 500VAC -55～+125℃ Temperature Range

基本情報

ブランド名:	Raymo
証明:	CE/RoHs/REACH/ISO9001:2015
モデル番号:	J30J-31TJS
書類:	J30J Miniature Rectangular ...es.pdf

Minimum Order Quantity:	1 Piece
価格:	5-15 USD
Packaging Details:	CTN
Delivery Time:	3-4 Weeks
支払条件:	T/T、D/A、D/P、Western Union、MoneyGram
Supply Ability:	5000PCS Per Month

接触

抵抗電圧:

500VAC

アプリケーション:

電子機器

中心導体:

銅合金,金塗装

格子距離:

2.54×254

タイプ:

コネクタ

温度範囲:

-55°C+125°C

ワイヤーの長さ:

50cm,500mm

交尾ケーブル:

AFR-250 ホワイトワイヤ 0.1~0.15mm2

ハイライト:

J30J series 31-pin connector

500VAC J30J connector

J30J connector high temperature range

J30J-31TJS 31 Pins J30J Series Connector

2.54×2.54 Grid Distance | ≤1.01X10^-3 Pa.cm³/s Leak Rate

Attribute	Value
Withstanding Voltage	500VAC
Application	Electronic Equipment
Center Conductor	Copper Alloy, Gold Plating
Grid Distance	2.54×2.54
Type	Connector
Temperature Range	-55～+125 ℃
Wire Length	50cm, 500mm
Mating Cable	AFR-250, White Wire 0.1~0.15mm²

Product Overview

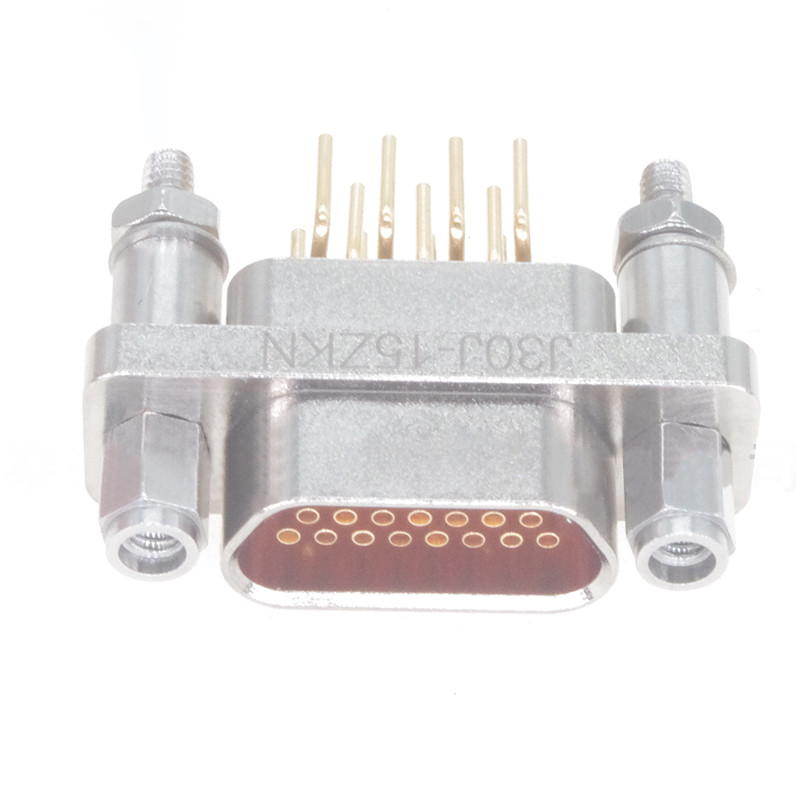

The J30J series connector is a versatile and reliable product designed for demanding applications. Part of the MWDM Glenair Micro-D series, this microminiature connector features Micro Twist Pin Contact technology for secure connections in space-constrained environments. Available in multiple pin configurations (9 to 100 pins), it offers flexibility for various connectivity needs.

Key Features

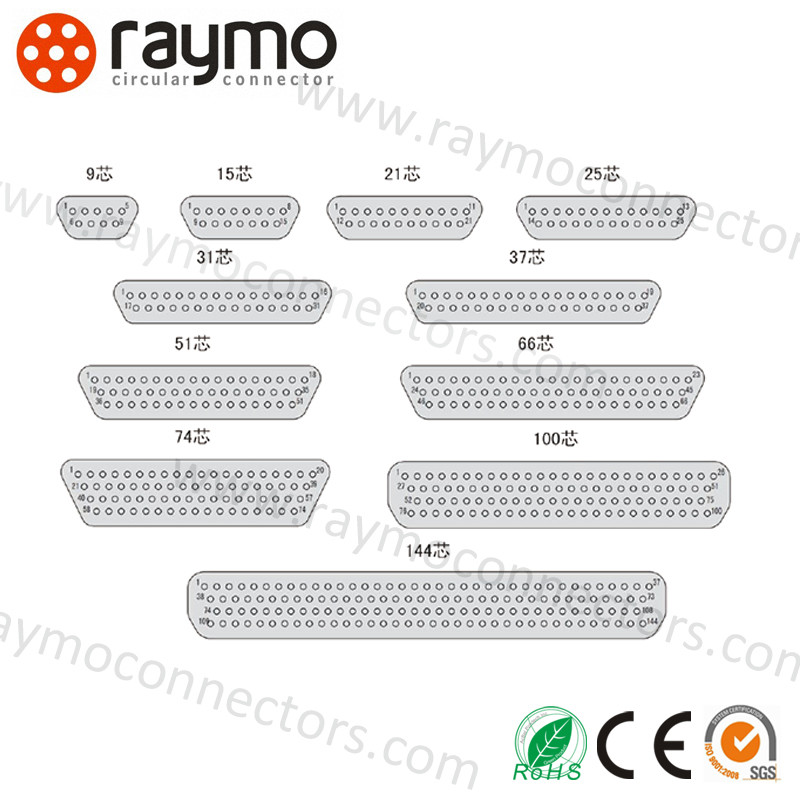

Multiple pin configurations: 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 pins
High withstanding voltage: 500VAC
Wide temperature range: -55～+125 ℃
Adjustable cable length to meet project requirements
Micro Twist Pin Contact technology for stable connections
Compatible with AFR-250 mating cable (White Wire 0.1~0.15mm²)

Technical Specifications

Withstanding Voltage	500VAC
Temperature Range	-55～+125 ℃
Voltage Rating	250V
Leak Rate	≤1.01X10^-3 Pa.cm³/s
Mating Cycle	500 Times

Applications

The J30J series connector is ideal for demanding applications across multiple industries:

Military/Defense: Communication systems, radar equipment
Aerospace: Avionics, satellite communication
Industrial Automation: Control systems, sensors
Telecommunications: Network infrastructure
Medical Equipment: Compliant with CE, RoHS, REACH standards

Support & Services

Our technical support team provides comprehensive assistance for installation, troubleshooting, and product compatibility. We ensure seamless integration and optimal performance of your J30J series connectors.
