| ブランド名: | Raymo |
|---|---|
| 証明: | CE/RoHs/REACH/ISO9001:2015 |
| Model Number: | RM-J30J |
| 書類: | J30J Miniature Rectangular ...es.pdf |
| Minimum Order Quantity: | 1 Piece |
| 価格: | 5-15 USD |
| Packaging Details: | CTN |
| Delivery Time: | 3-4 Weeks |
| 支払条件: | T/T、D/A、D/P、Western Union、MoneyGram |
| Supply Ability: | 5000PCS Per Month |
| 材料: | 金属 | 製品タイプ: | コネクタ |
|---|---|---|---|
| 現在の評価: | 3a | 連絡先: | 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 |
| 格子距離: | 2.54×254 | 中心導体: | 銅合金,金塗装 |
| 絶縁抵抗: | ≥5000MΩ | 連絡の終了: | クリンプ |
| ハイライト: | J30J series metal connector with gold plating,1.27mm contact spacing J30J connector,J30J series gold plated metal connector |
||
| Attribute | Value |
|---|---|
| Material | Metal |
| Product Type | Connector |
| Current Rating | 3A |

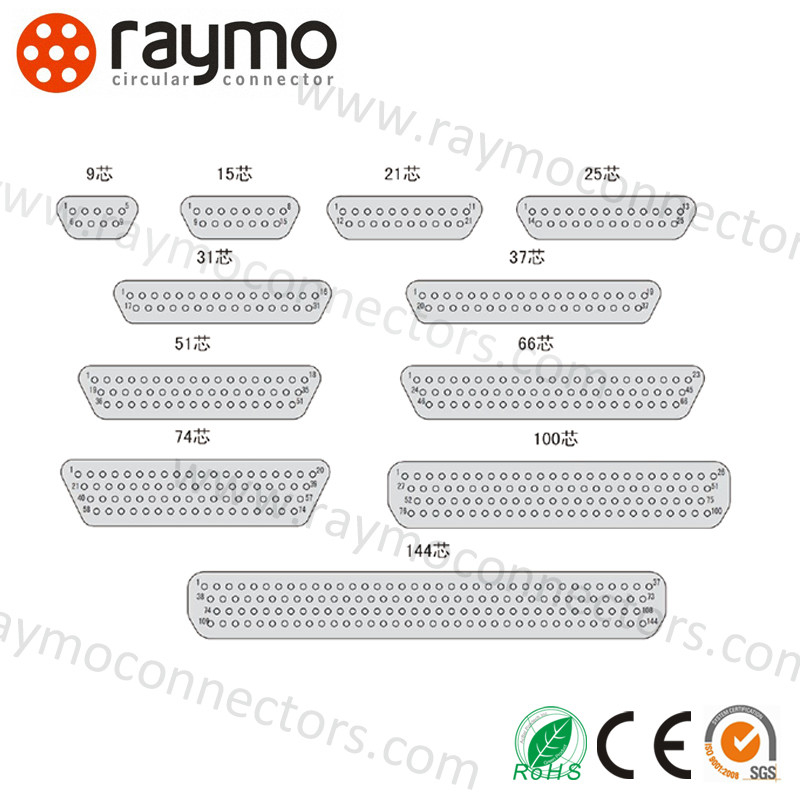

| Contact | 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 |
| Grid Distance | 2.54×2.54 |
| Center Conductor | Copper Alloy, Gold Plating |
| Insulation Resistance | ≥ 5000 MΩ |
| Contact Termination | Crimp |
| Parameter | Value |
|---|---|
| Contact Gender | Male Plug/Female Receptacle |
| DWV | 800V |
| Product Type | Connector |
| Center Conductor | Copper Alloy, Gold Plating |
| Current Rating | 3A |
| Temperature Range | -55～+125°C |
