| ブランド名: | Raymo |
|---|---|
| 証明: | CE/RoHs/REACH/ISO9001:2015 |
| Model Number: | RM-J30J |
| 書類: | J30J Miniature Rectangular ...es.pdf |
| Minimum Order Quantity: | 1 Piece |
| 価格: | 5-15 USD |
| Packaging Details: | CTN |
| Delivery Time: | 3-4 Weeks |
| 支払条件: | T/T、D/A、D/P、Western Union、MoneyGram |
| Supply Ability: | 5000PCS Per Month |
| 絶縁抵抗: | ≥5000MΩ | 格子距離: | 2.54×254 |
|---|---|---|---|
| 連絡先 性別: | 男性プラグ/メスレセプタクル | 接触距離: | 1.27mm |
| 連絡先: | 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 | 中心導体: | 銅合金,金塗装 |
| パルトリング: | ゴールドメッキ | DWV: | 800V |
| ハイライト: | J30J series gold plated connector,miniature rectangular connector custom wire,J30J connector with warranty |
||
| Attribute | Value |
|---|---|
| Insulation Resistance | ≥ 5000 MΩ |
| Grid Distance | 2.54×2.54 |
| Contact Gender | Male Plug/female Receptacle |
| Contact Spacing | 1.27mm |
| Contact | 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 |
| Center Conductor | Copper Alloy, Gold Plating |
| Plating | Gold Plating |
| Dwv | 800V |

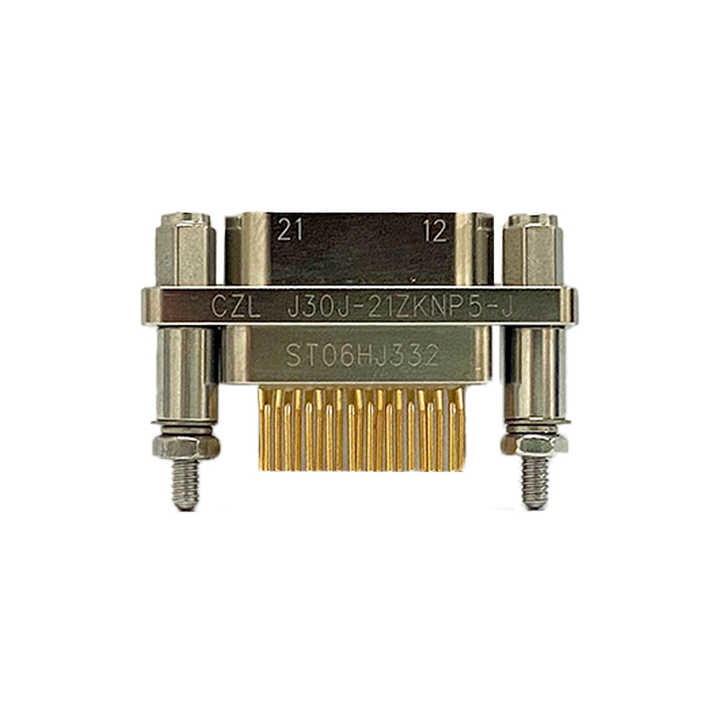

The J30J series connector offers versatile contact options (9-100 contacts) with customizable wire length for specific application requirements. Designed to meet MIL-C-83513 standards and compatible with ITT Cannon MDM Series connectors, it delivers high performance in demanding environments.
Featuring excellent electrical insulation (≥5000 MΩ) and a wide operating temperature range (-55°C to +125°C), this connector is ideal for harsh conditions. The copper alloy center conductor with gold plating ensures superior conductivity and minimal signal loss.
| Parameter | Specification |
|---|---|

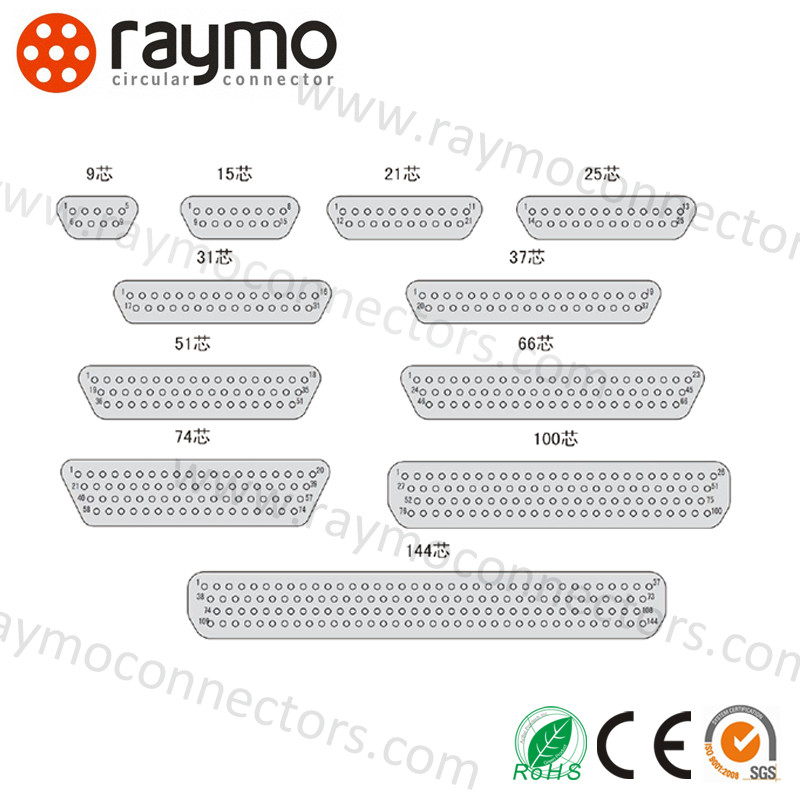

| Contact Options | 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 |
| Contact Termination | Crimp |
| Insulation Resistance | ≥ 5000 MΩ |
| Dwv | 800V |
| Contact Spacing | 1.27mm |
| Plating | Gold Plating |
The J30J series connector is widely used in:
Certified to CE, RoHS, REACH, and ISO9001:2015 standards, ensuring compliance with stringent quality requirements.
Our technical support team provides comprehensive assistance for installation, compatibility, and performance optimization. We offer troubleshooting and maintenance support to ensure optimal operation of your J30J series connectors.
